Precision Spreading
Farm-Maxx Pendulum Spreaders
Precision spreading control for fertilizer, seed, and turf applications.
The Farm-Maxx Pendulum Spreader Series delivers exceptional control, accuracy, and consistency for professional spreading applications. The pendulum motion distributes materials evenly in a precise pattern, making it ideal for fertilizer, lime, or seed in fields, orchards, and turf operations. Compact, efficient, and easy to maintain, these spreaders offer dependable performance season after season.
Key Features of the Farm-Maxx Pendulum Spreaders
Two Hopper Options for Different Applications
-

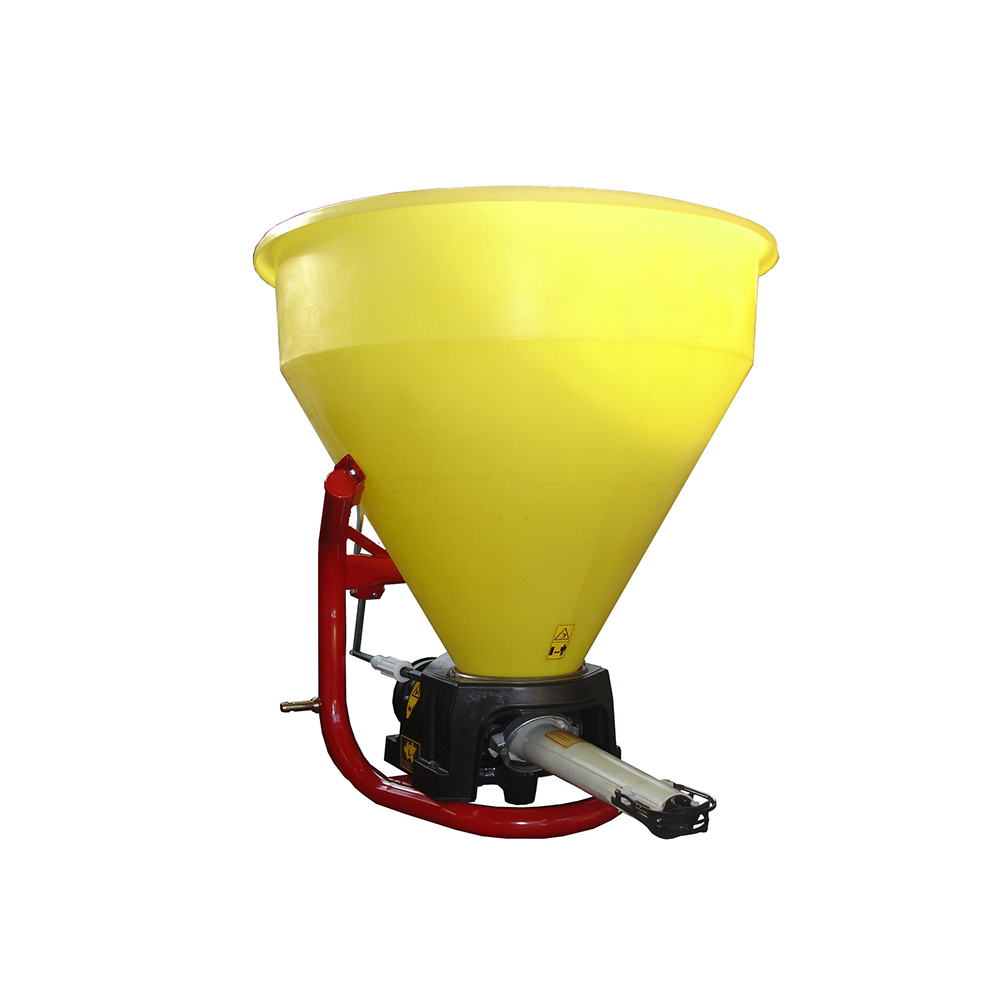

PDSPC Models – Cone-type poly hopper design; lightweight, rust-proof, and ideal for smaller tractors or general fertilizer work.
-

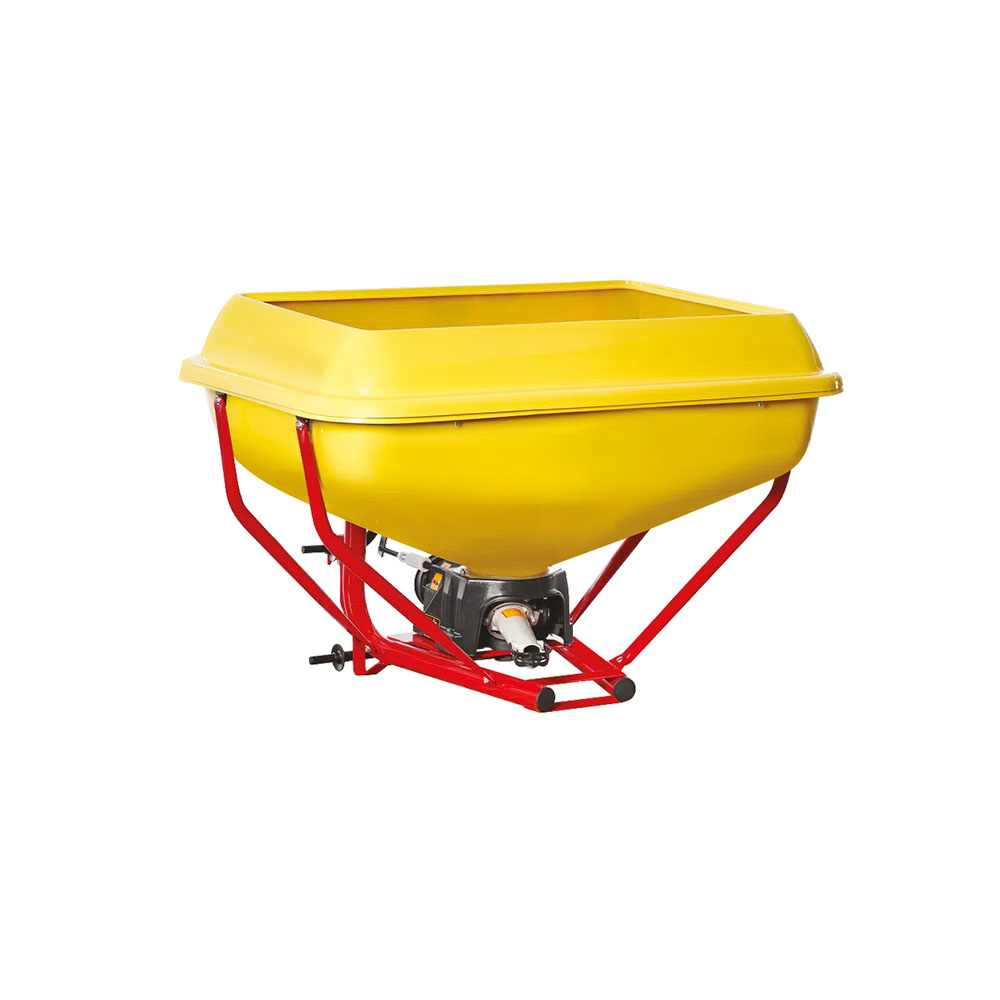

PDV Models – Rectangular fiberglass hopper; heavy-duty, corrosion-resistant, and built for professional agricultural or commercial operations.

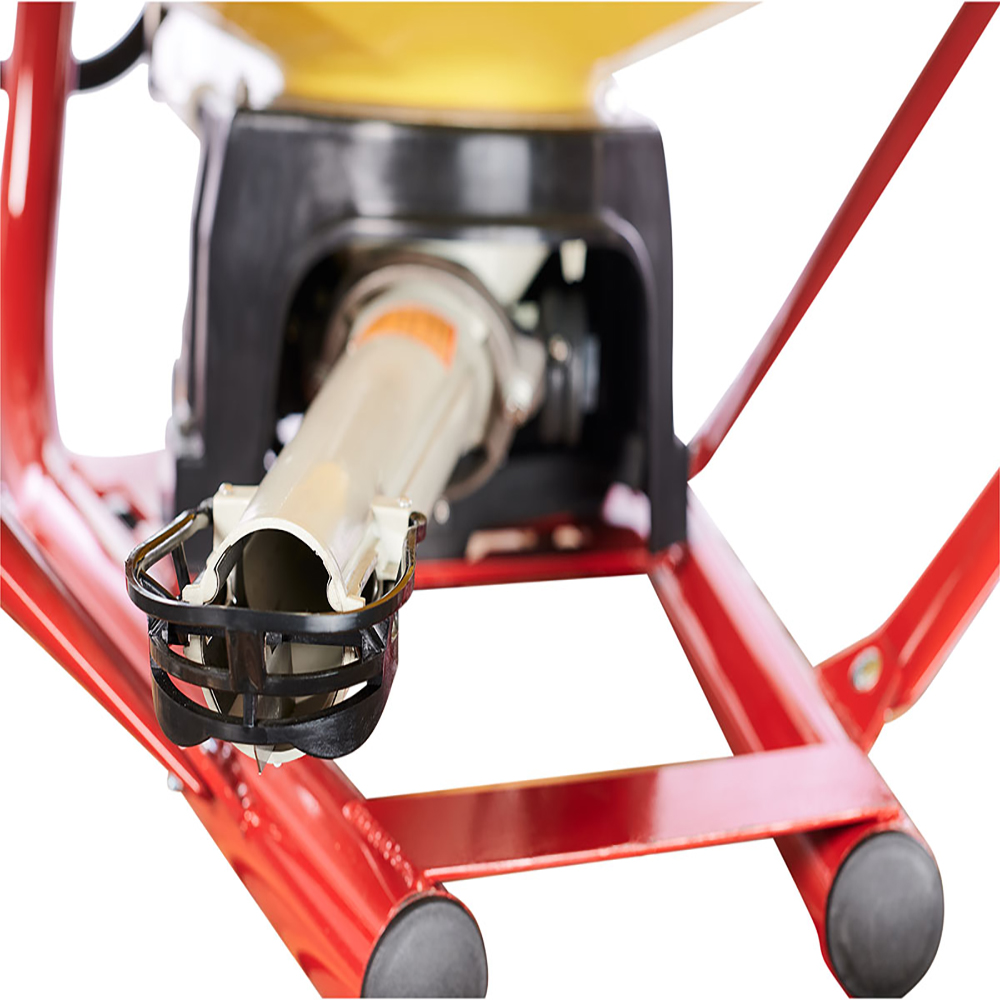

Oscillating Pendulum Spout
The pendulum arm swings in a smooth, calibrated motion to deliver uniform, directional coverage and unmatched spreading accuracy.

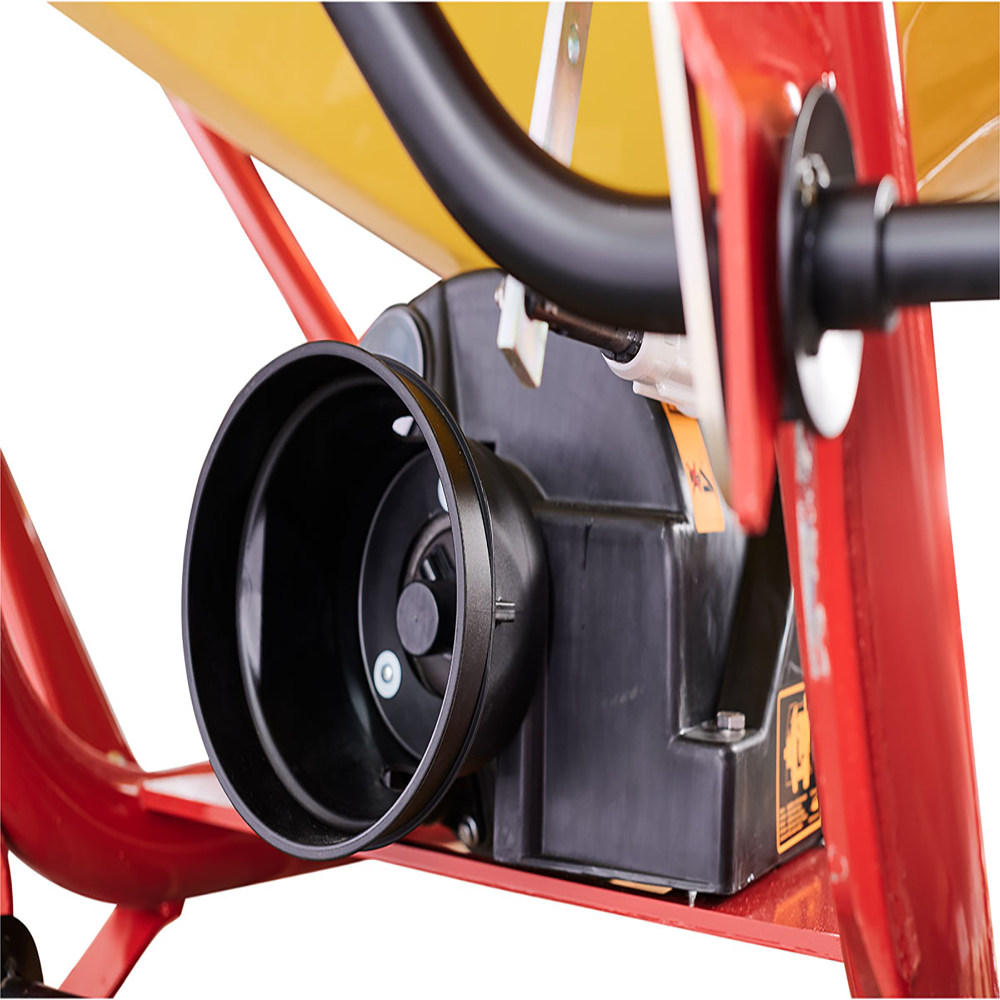

Heavy-Duty PTO & Gearbox Assembly
Equipped with a Series 4 PTO shaft and a continuous orbital flywheel gearbox featuring a rubber shock-absorbing input shaft and a three-range oscillation adjustment system for precise control and smoother performance.

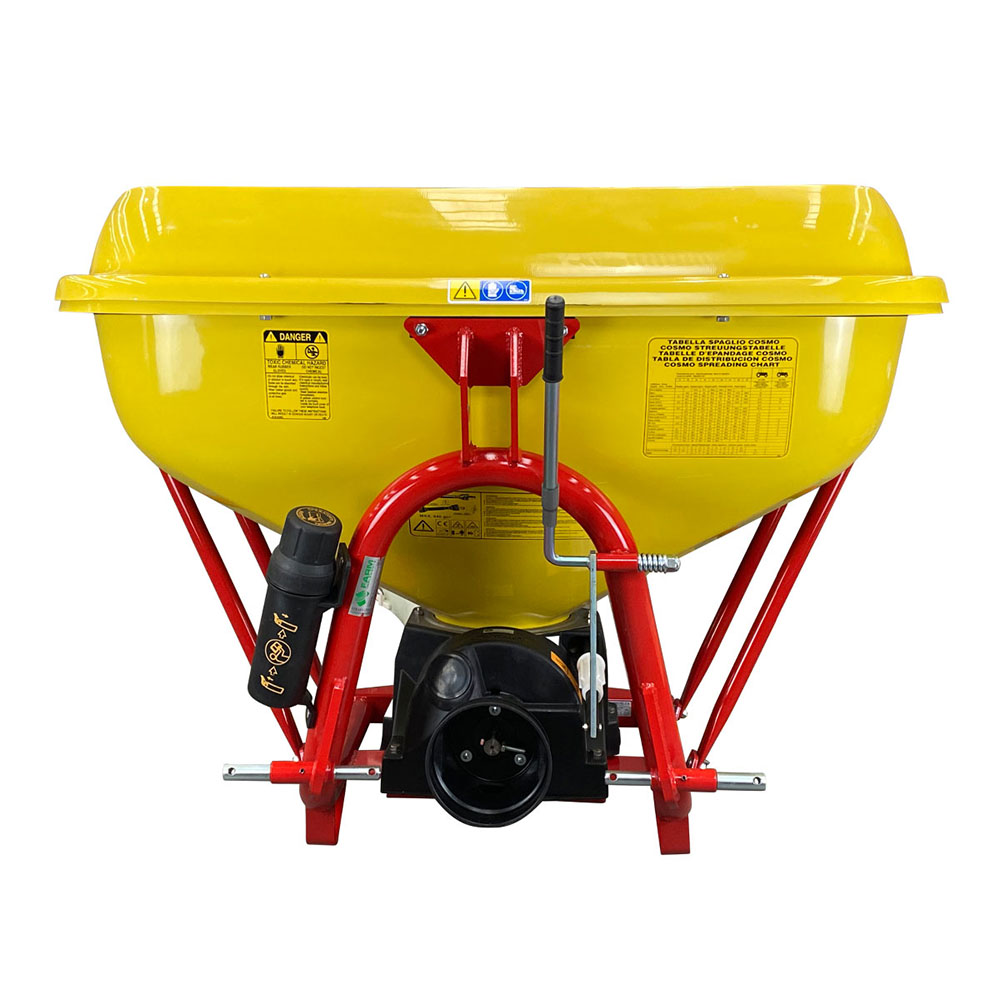

Tubular Steel Frame with Category I & II 3-Point Hitch
Strong, balanced frame ensures stability and compatibility with a wide range of compact and utility tractors.
Specifications for the Farm-Maxx Pendulum Spreaders
Model Name
PDSPC-400
PDSP-500
PDSP-1000
Carrying Capacity (lbs)
1098
1422
2844
Spreading Width Max (ft)
20-40
20-40
20-40
Hopper Material
Spun Steel
Fiberglass-Reinforced Plastic
Fiberglass-Reinforced Plastic
Hitch
Cat. I
Cat. I & II
Cat. I & II
Crown Agitator
N/A
Optional
Optional

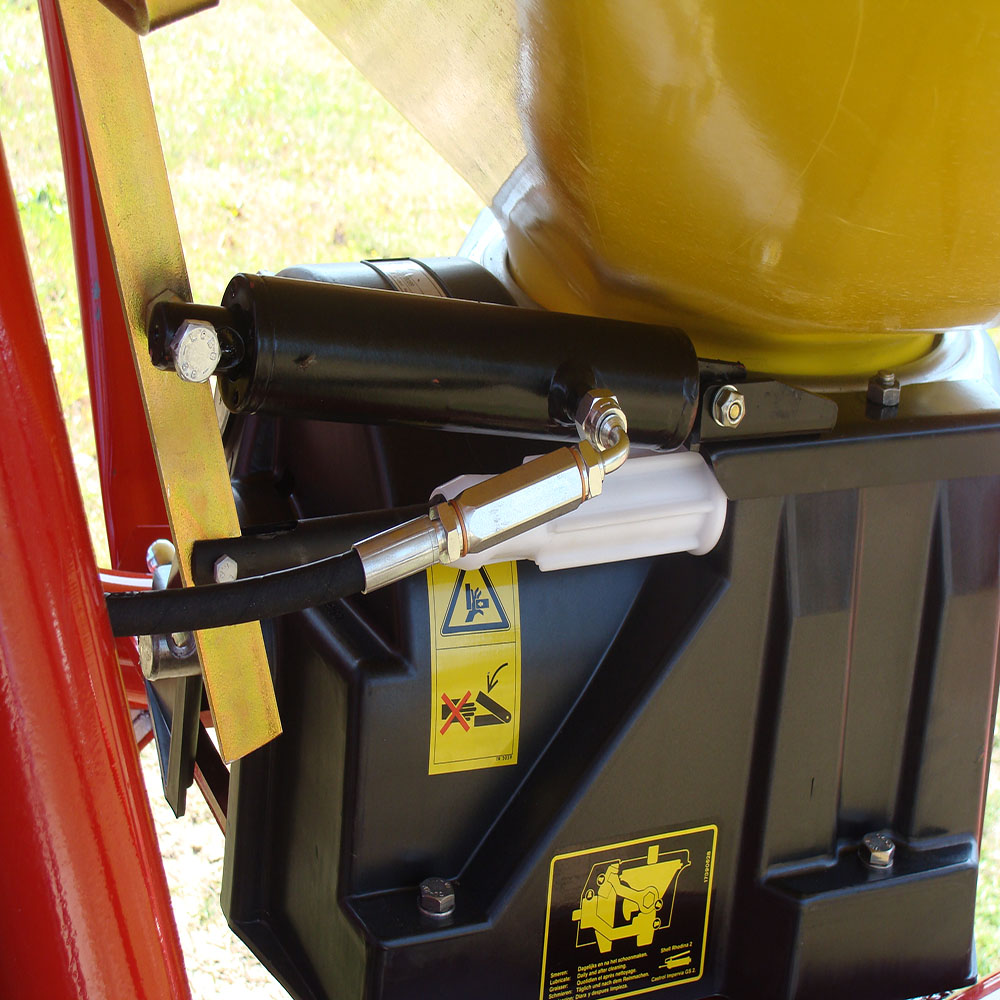

Hyd. Opening Kit
N/A
Optional
Optional
Tractor HP
6
6
6
Approx. Weight (lbs)
220
287
393
Explore Our Equipment
Farm-Maxx Pendulum Spreaders Gallery
Common Inquiries About Pendulum Spreaders
Explore answers to your questions about the precision and efficiency of Farm-Maxx Pendulum Spreaders.
How do pendulum spreaders differ from spin spreaders?
Pendulum spreaders offer superior control and accuracy, making them ideal for precise applications, unlike spin spreaders that cover wider areas with less precision.
What materials can be used with a pendulum spreader?
Our pendulum spreaders can handle a variety of materials including fertilizer, seed, sand, and granular lime, with adjustable flow rates for each.
Is calibration necessary for pendulum spreaders?
Yes, calibration is essential. Use the provided rate charts and adjust the gate control to ensure accurate material output.
What size tractor is compatible with Farm-Maxx Pendulum Spreaders?
These spreaders are designed for compact and utility tractors equipped with Category I 3-point hitches.
Where can I obtain service or parts for my spreader?
Service and parts are available through UniFarm dealers. Manuals and parts lists can be requested from UniFarm directly.
What maintenance is required for pendulum spreaders?
Regular cleaning and lubrication are recommended to maintain optimal performance and extend the lifespan of your spreader.
Can pendulum spreaders be used in windy conditions?
Yes, the pendulum spreading system ensures even coverage and directional accuracy, even in challenging weather conditions.
How do I adjust the spread width on a pendulum spreader?
The spread width can be adjusted using the calibrated lever system, allowing for precise control over the coverage area.
Are pendulum spreaders suitable for professional use?
Absolutely, their precision and reliability make them ideal for professional turf, orchard, and vineyard applications.
Precision Spreading Made Simple
Discover how the Farm-Maxx Pendulum Spreader Series can enhance your agricultural operations with unmatched accuracy and simplicity. Add these reliable spreaders to your dealership lineup or request detailed product information today.
