Clear, Rake, And grip with precision

Farm-Maxx FRKG Rake Grapples

Effortlessly tackle land clearing and debris management with our powerful rake grapples, designed for efficiency and durability.

Download Brochure (PDF)

Versatile Applications for Every Task

The Farm-Maxx FRKG Series Rake Grapples are engineered to handle a variety of tough jobs. Whether you’re clearing land, managing storm debris, or removing rocks and roots, these grapples provide the power and precision you need. Built with heavy-duty materials, they ensure long-lasting performance and reliability in the field.

Key Features of the FRKG Series Rake Grapples

Heavy-Duty Steel Frame

Premium AR400 Steel reinforced design for maximum strength and long service life.

Universal Skid-Steer Quick Attach

Mounts easily to most compact tractors, loaders, and skid steers with standard quick-attach.

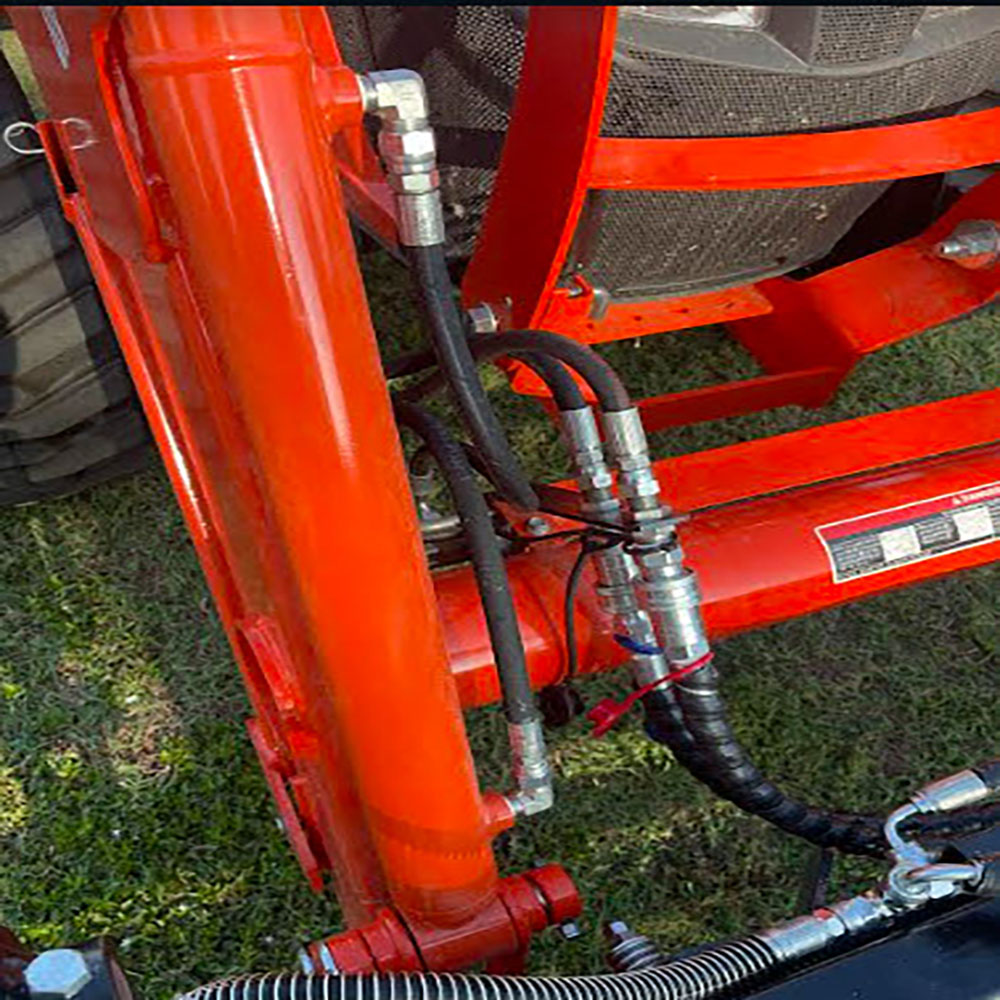

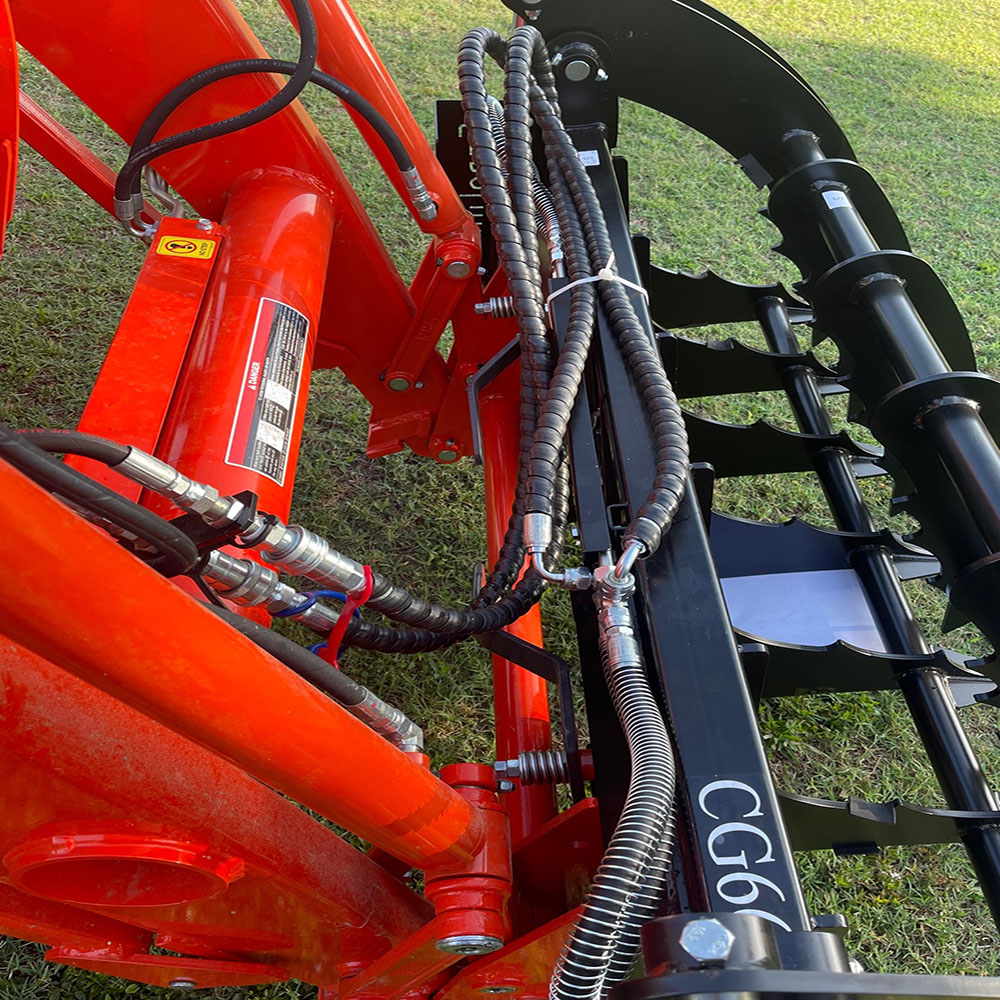

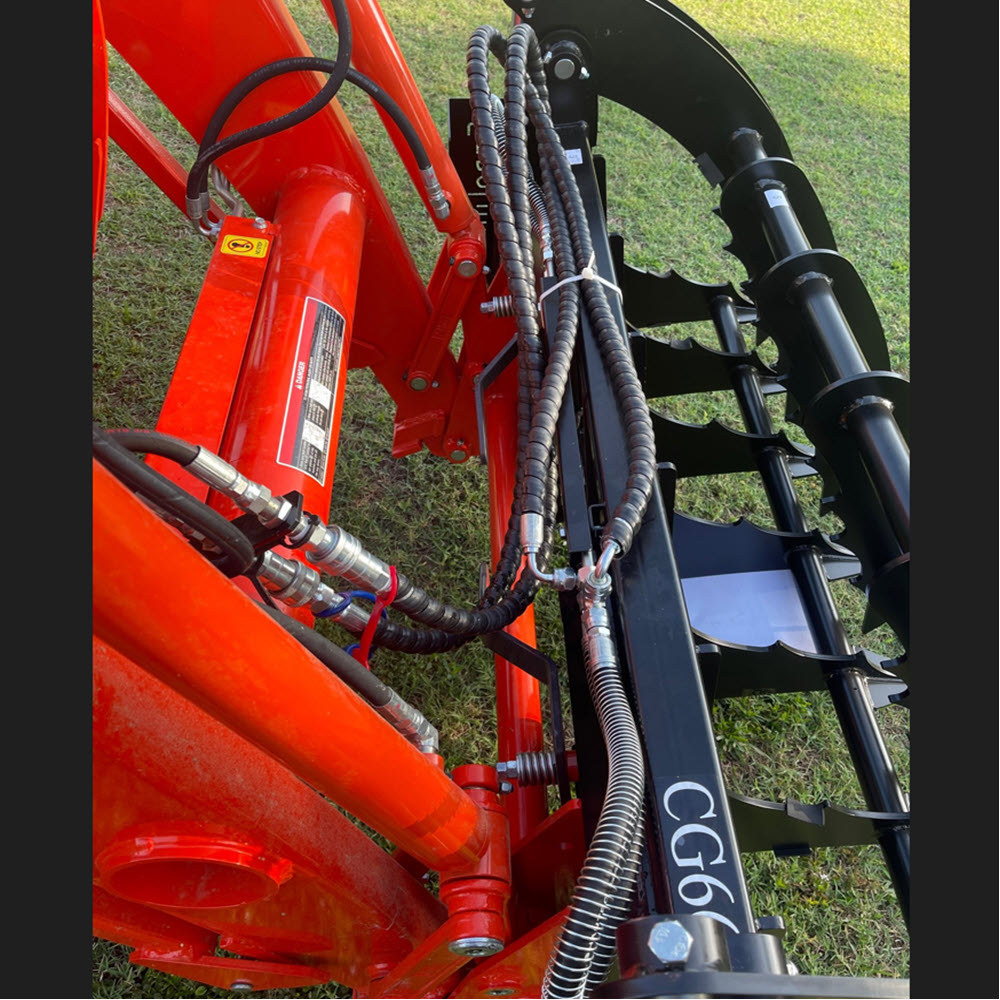

Quick Connect Hydraulics w/Tuff Flex® Hose Sleeve

Includes ½” male and female couplers for fast, secure connection to your machine & protects hydraulic lines from wear and impact in rugged environments.

    Powerful Hydraulic Cylinder Options

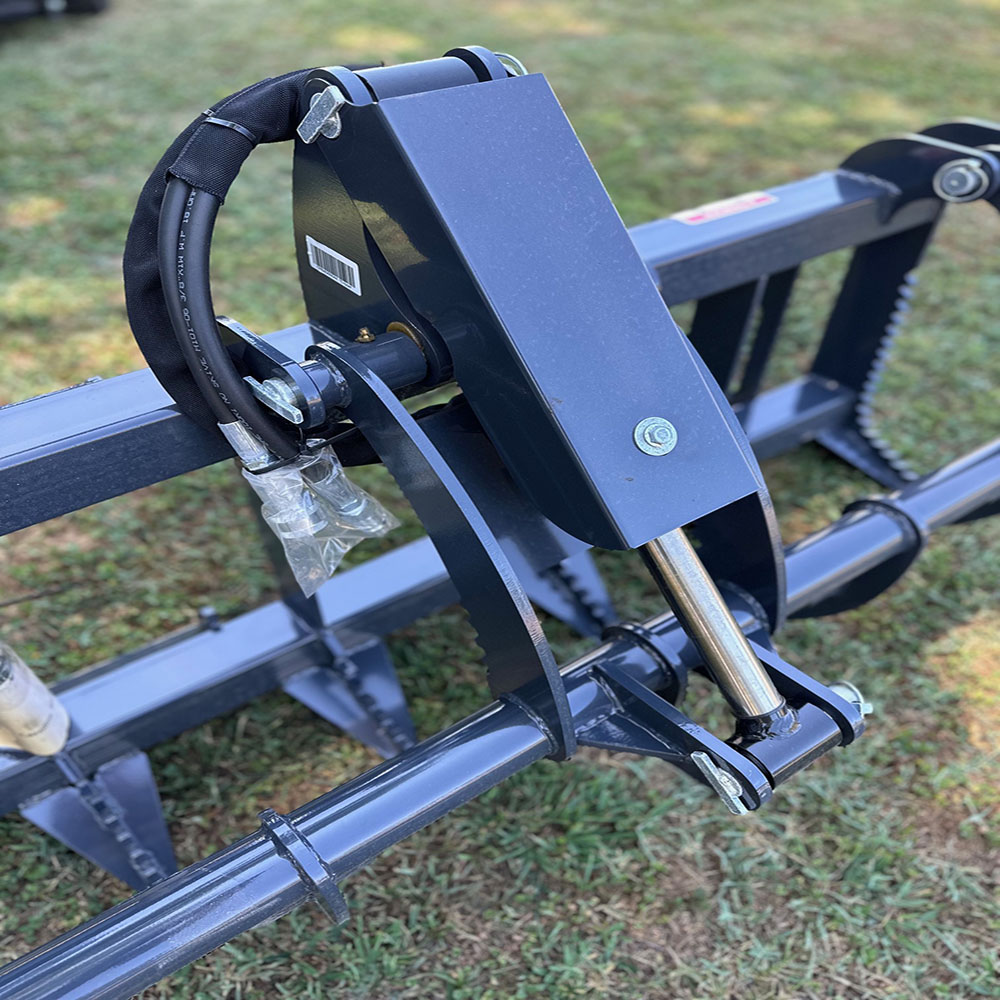

    • The FRKG-54 features a single heavy-duty hydraulic cylinder, perfect for compact tractors and lighter-duty work.

    • The FRKG-60, FRKG-66, and FRKG-72 models use dual hydraulic cylinders for balanced, high-clamping force when handling heavy logs, stumps, and brush.

    Farm-Maxx FRKG Series Rake Grapple Comparison

    Compare the Farm-Maxx FRKG Series Rake Grapples to find the right model for your equipment and application. Available in 54", 60", 66", and 72" working widths, these grapples are designed for handling brush, limbs, debris, and other materials. Review the working width, grapple opening, hydraulic cylinder configuration, and approximate weight of each model below.

    ☰
    Model
    ↔
    Working Width
    ⚙
    Teeth (Top/Bottom)
    ↕
    Grapple Opening
    💧
    Hydraulic Cylinders
    ⚖
    Weight
    FRKG-54
    54"
    7 / 8
    41.8"
    Single
    240 lbs
    FRKG-60
    60"
    7 / 8
    41.8"
    Double
    381 lbs
    FRKG-66
    66"
    7 / 8
    47.3"
    Double
    500 lbs
    FRKG-72
    72"
    8 / 9
    47.6"
    Double
    538 lbs

    Farm-Maxx FRKG-54

    Working Width
    54"
    Teeth (Top/Bottom)
    7 / 8
    Grapple Opening
    41.8"
    Hydraulic Cylinders
    Single
    Weight
    240 lbs

    Farm-Maxx FRKG-60

    Working Width
    60"
    Teeth (Top/Bottom)
    7 / 8
    Grapple Opening
    41.8"
    Hydraulic Cylinders
    Double
    Weight
    381 lbs

    Farm-Maxx FRKG-66

    Working Width
    66"
    Teeth (Top/Bottom)
    7 / 8
    Grapple Opening
    47.3"
    Hydraulic Cylinders
    Double
    Weight
    500 lbs

    Farm-Maxx FRKG-72

    Working Width
    72"
    Teeth (Top/Bottom)
    8 / 9
    Grapple Opening
    47.6"
    Hydraulic Cylinders
    Double
    Weight
    538 lbs

    Specifications are provided for model comparison. Confirm equipment compatibility and hydraulic requirements before purchasing.
    Need help choosing the right FRKG Rake Grapple? Contact Unifarm Machinery Corporation for product information, availability, and authorized dealer support.

    Explore Our Equipment

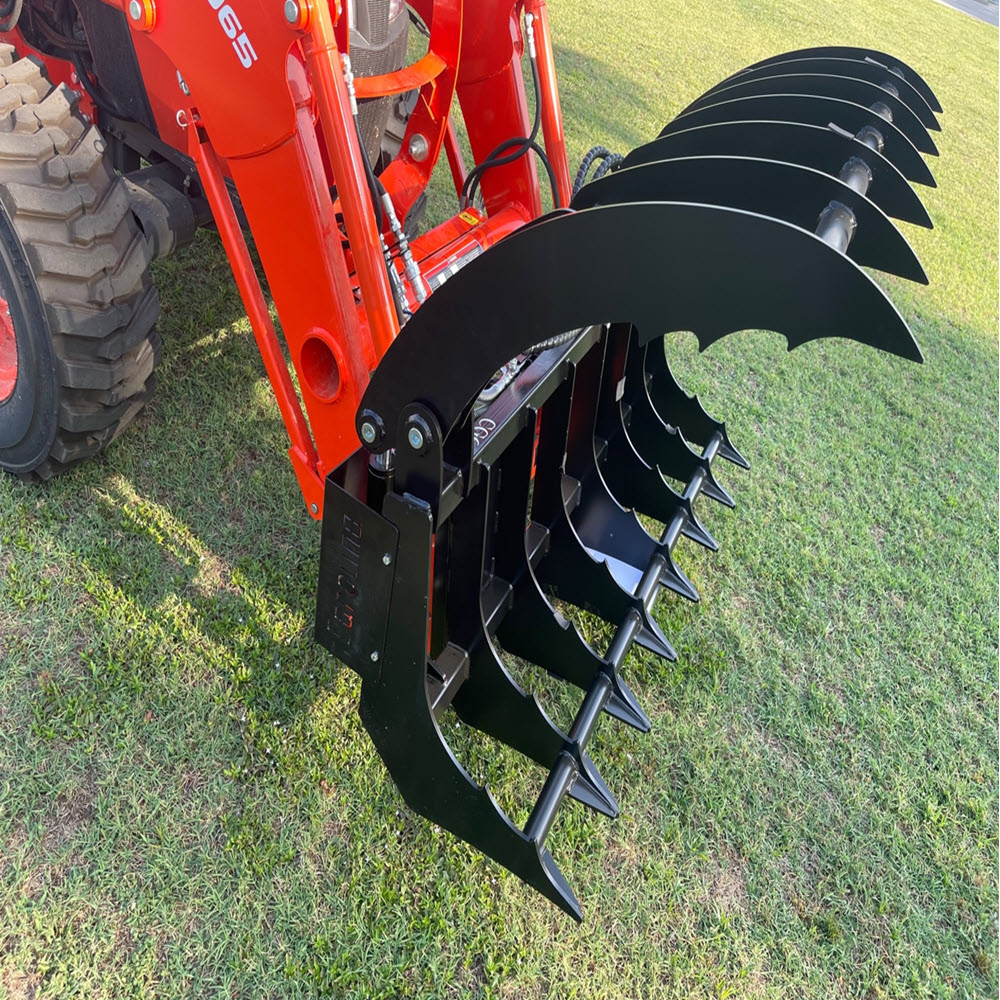

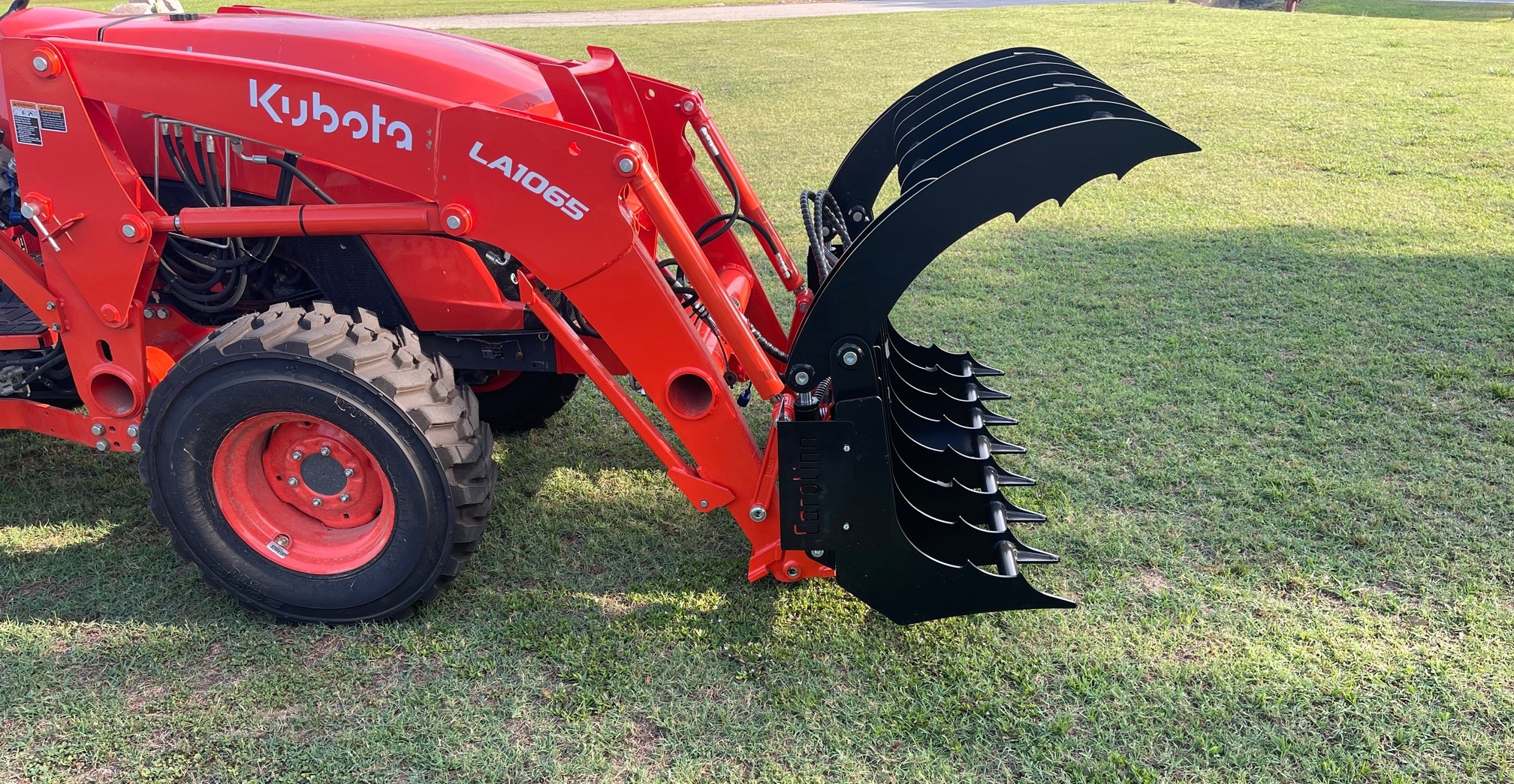

    Farm-Maxx FRKG Series Gallery

    FRKG Series FAQ

    Explore common questions about the FRKG rake grapples to enhance your understanding and usage.

    Is the FRKG rake grapple compatible with all tractors?

    The FRKG rake grapple is designed to be compatible with most tractors equipped with a universal skid-steer quick attach system.

    What hydraulic requirements are needed for the FRKG rake grapple?

    The FRKG rake grapple requires a dual hydraulic system for optimal performance, ensuring smooth and efficient operation.

    What are the best uses for the FRKG rake grapple?

    The FRKG rake grapple excels in land clearing, debris removal, and storm cleanup, making it versatile for various agricultural and landscaping tasks.

    How should I maintain my FRKG rake grapple?

    Regular maintenance includes greasing pivot points, checking hydraulic hoses for wear, and inspecting teeth for damage to ensure longevity.

    How do I know which FRKG model is right for me?

    Consider your tractor’s horsepower and the scale of your tasks. Our comparison chart can help you choose the right model based on your needs.
