Clean, Uniform Windrows with Ease
Farm-Maxx Rotary Rakes
Maximize Your Hay Quality
Get smooth, uniform windrows and faster drying with Farm-Maxx Rotary Rakes. Designed for efficiency, durability, and gentle crop handling, these rakes deliver professional results in any hay operation. Both the FRM-280 and FGRR-330 are engineered to perform season after season with minimal maintenance and exceptional maneuverability.
Perfect Windrows, Better Hay
Farm-Maxx rotary rakes create clean, uniform windrows that dry faster and retain more nutrients. Gentle handling and efficient design mean less waste, better airflow, and higher-quality hay every time.
Gentle Crop Handling

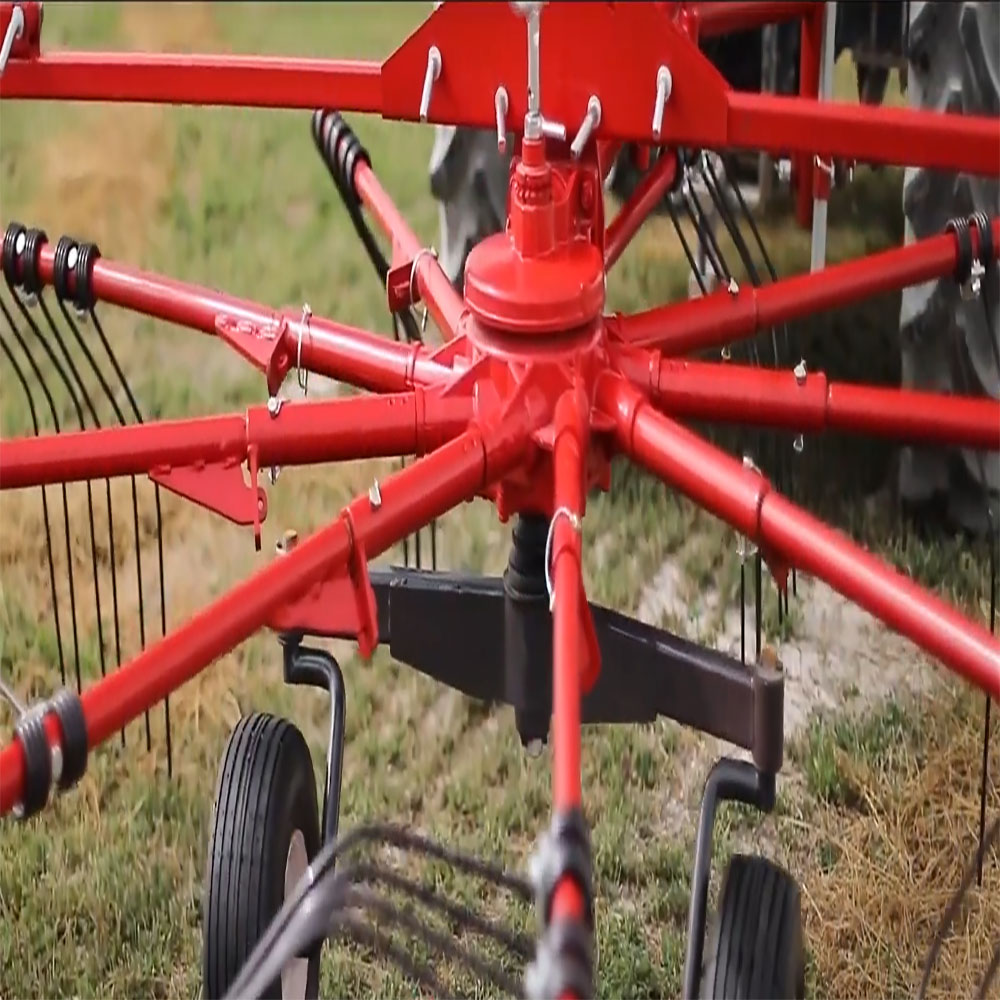

The balanced rotor design and flexible tines of our rotary rakes handle hay with precision. Each pass lifts and turns the crop lightly to prevent aggressive contact, maintaining leaf integrity and producing clean, uniform windrows.
Versatile Adjustments

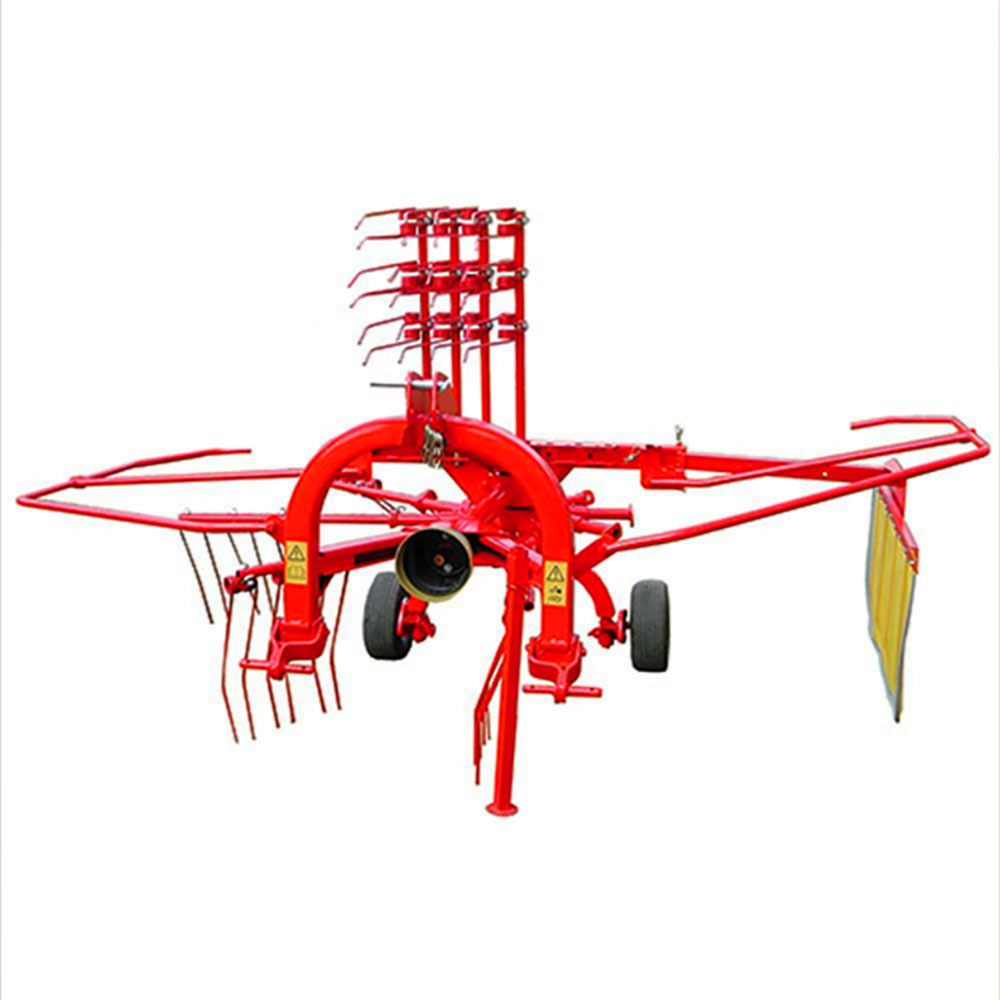

Farm-Maxx rotary rakes feature adjustable arms, tines, and windrow settings to adapt easily to varying field conditions and crop types. Fine-tune your raking width and windrow formation for optimal performance and efficiency in any terrain.
Key Features of the Farm-Maxx Rotary Rakes
3-Point Cat. I Hitch Compatibility
Quick and simple Category I hookup for compact and utility tractors.
Durable Frame Construction
Heavy-duty powder-coated steel frame built for serious hay operations and long service life.
Sealed Oil-Filled Gearbox
Fully enclosed system provides long-lasting durability and minimal maintenance, even in dusty or damp conditions.
Compact Maneuverable Design
Optimized frame geometry and turning radius make these rakes easy to handle, even in tight or irregular fields.
Technical Specifications for the Farm-Maxx Rotary Rakes
Compare the specifications and features of our Farm-Maxx Rotary Rakes to choose the model that best suits your operation.
The comparison chart highlights key details such as raking width, number of arms and tines, approximate weight, and recommended tractor horsepower—providing all the information you need to select the perfect rake for clean, consistent windrows every time.
Model Name
FRM-280
FGRR-300
Working Width (inches)
110″
136″
Rotors
1
1
Arms
8
9
Number of Tines per Arm
3
3
Tire Size
15×6.00-6 Balloons
15×6.00-6 Balloons
Hitch
Cat. I
Cat. I
Tractor HP Required (HP)
20
20
Optimum PTO Speed (RPM)
540
540
Approx. Weight (lbs)
700
800
Explore Our Equipment

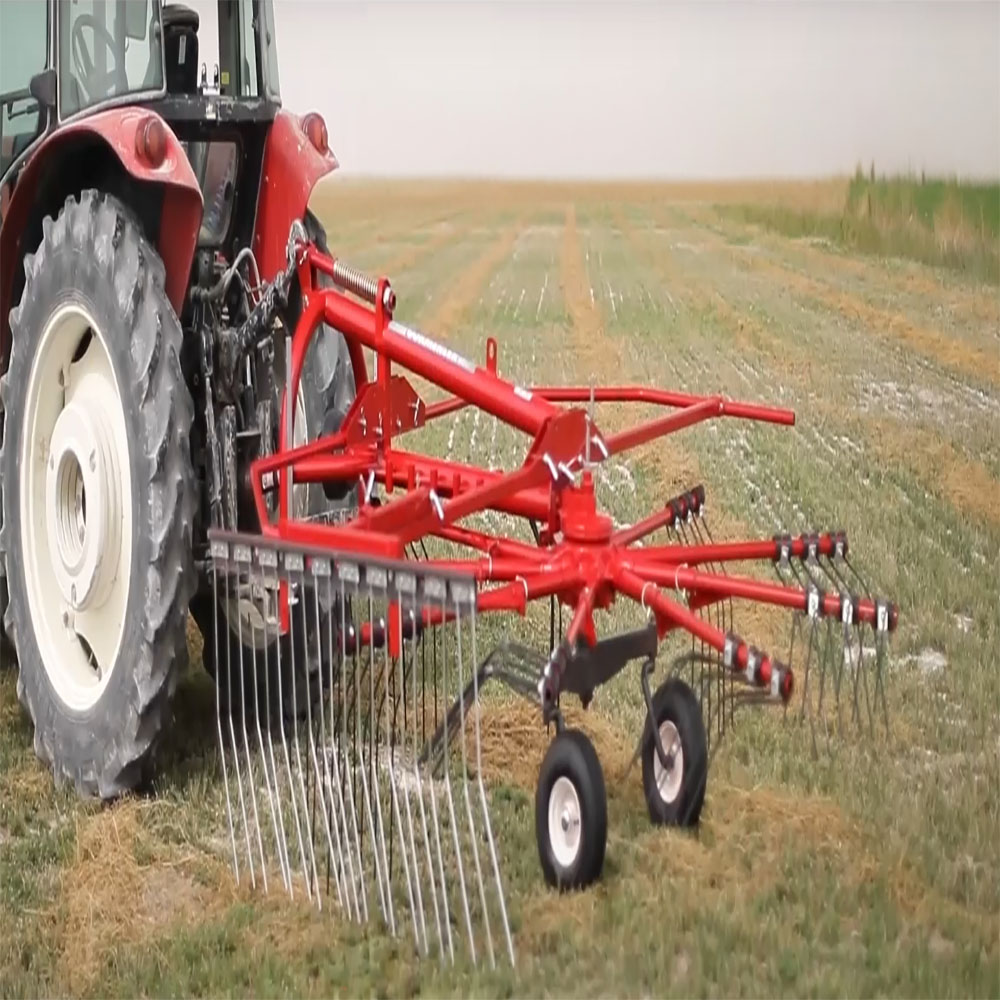

Rotary Rakes in Action
Common Questions About Rotary Rakes
Discover the benefits and features of rotary rakes for efficient hay production.
What are the advantages of rotary rakes over wheel rakes?
Rotary rakes offer superior windrow uniformity and gentle handling, reducing leaf loss and improving forage quality.
How much horsepower is required to operate a rotary rake?
Rotary rakes typically require between 30 to 50 horsepower, depending on the model and working width.
How do rotary rakes improve windrow quality?
They create consistent, fluffy windrows that enhance drying efficiency and minimize contamination.
