Heavy-Duty Rake Grapples for Brush Removal, Land Clearing & Debris Handling

Farm-Maxx TS Series Rake Grapples

Farm-Maxx TS Series Rake Grapples are built for tough land clearing, brush removal, root raking, and debris handling jobs. Designed for strength, visibility, and dependable performance, these heavy-duty grapples help operators move brush, limbs, roots, storm debris, and bulky material with confidence.

Download Brochure (PDF)

Built to Dominate Land Clearing Projects

Farm-Maxx TS Series Rake Grapples are engineered for demanding land clearing, brush removal, root raking, and debris handling applications. Built with heavy-duty steel construction and exceptional clamping force, these grapples allow operators to efficiently move logs, brush, roots, storm debris, and bulky materials while maximizing productivity on farms, ranches, construction sites, and rural properties.

✓ Heavy-Duty Steel Construction
✓ Aggressive Tine Design for Superior Material Retention
✓ Ideal for Brush, Roots, Logs & Storm Debris
✓ Available for Tractors & Skid Steers

Download Brochure (PDF)

Key Features of the FRKG TS Series Rake Grapples

Heavy-Duty Steel Frame
Premium AR400 Steel reinforced design for maximum strength and long service life.

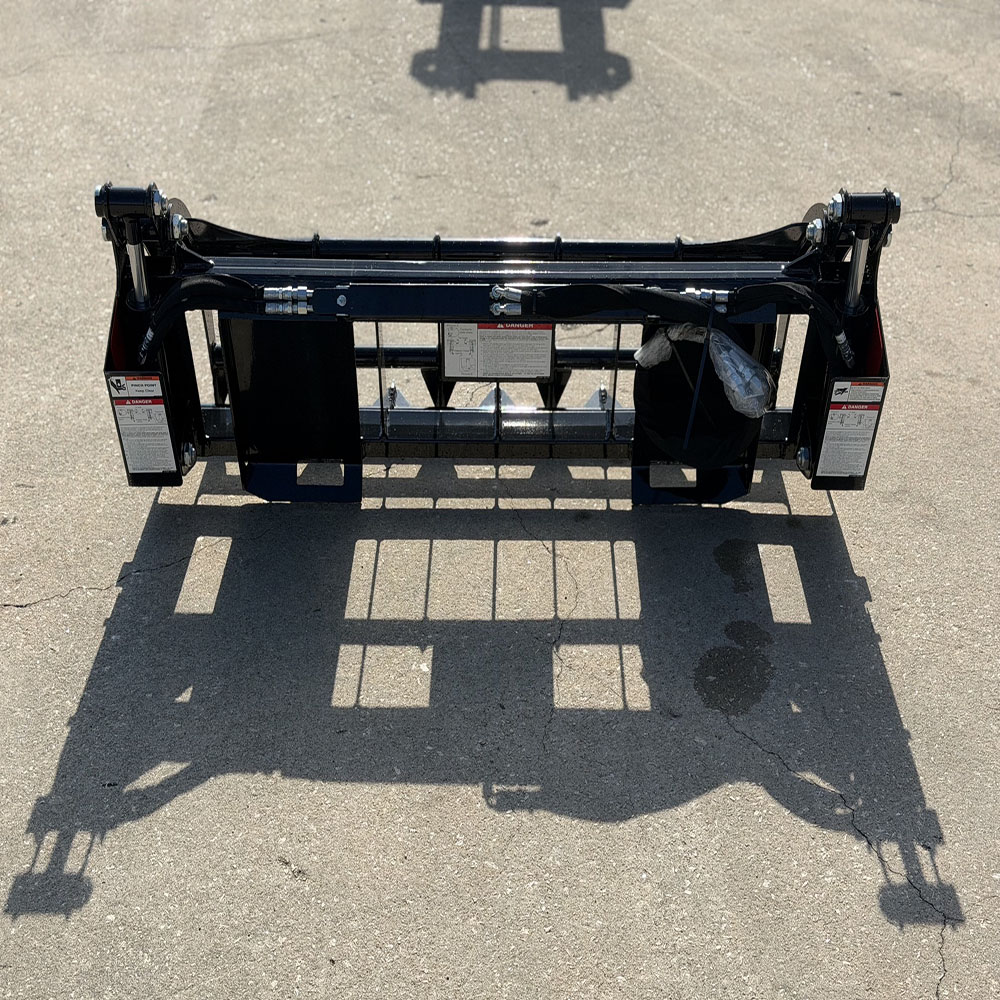

Universal Skid-Steer Quick Attach

Mounts easily to most compact tractors, loaders, and skid steers with standard quick-attach.

Reinforced Blade Structure

A reinforcement plate is welded to the end of the grapple blade to prevent the blade from bending during work. (Applied to all models and every blade)

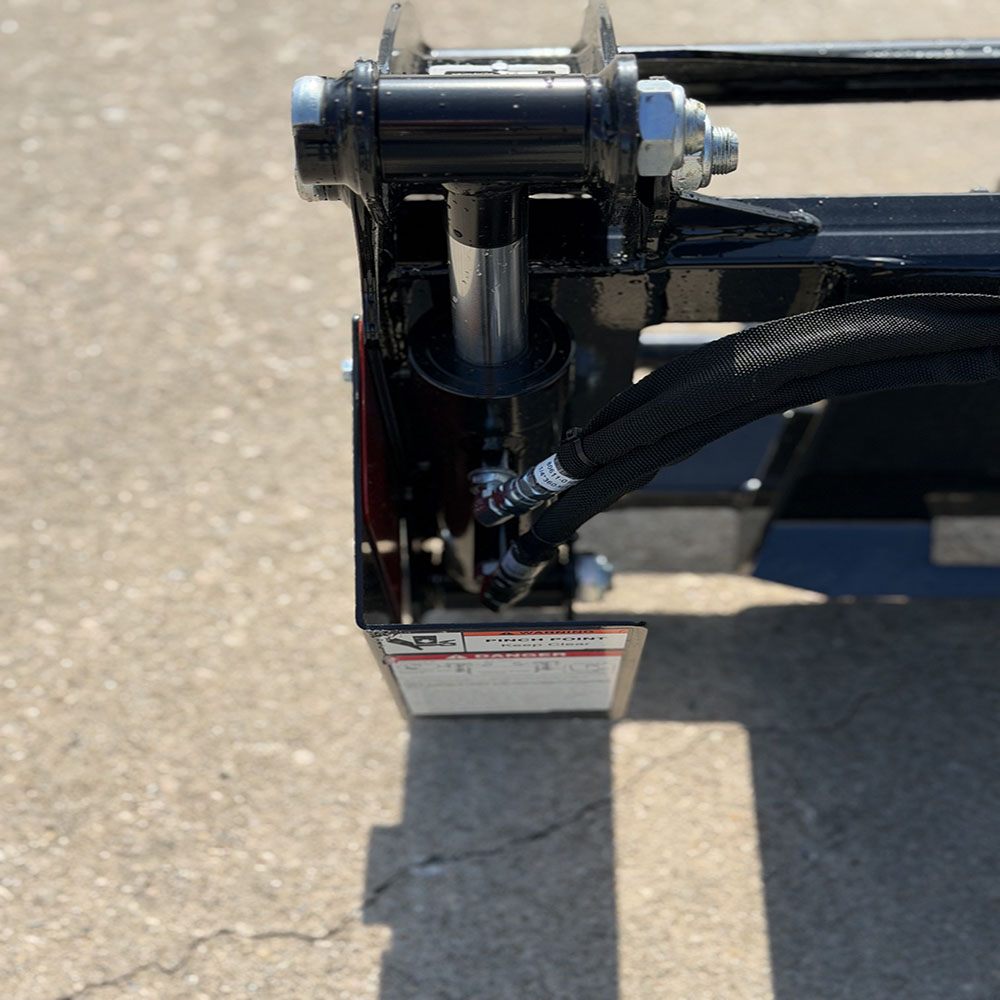

    Heavy-Duty Hydraulic Clamping

    Hydraulic cylinder configuration is matched to the grapple size, with compact models utilizing a single cylinder and larger models featuring dual cylinders for smooth, dependable clamping performance.

    FRKG-TS Root Grapple Specifications & Model Comparison

    Compare FRKG-TS root grapple models by size, tractor horsepower, working width, weight, tine count, and overall dimensions to choose the right grapple for land clearing, brush removal, storm cleanup, and material handling.

    ☰
    Model
    🚜
    Tractor HP
    ↔
    Working Width
    ⚖
    Weight
    📏
    Max Opening
    ≡
    Tines
    ⚙
    Material
    FRKG-48-TS
    21–25 HP
    48"
    217 lbs
    33"
    6 upper / 6 lower
    AR400
    FRKG-54-TS
    25–50 HP
    54"
    243 lbs
    33"
    6 upper / 7 lower
    AR400
    FRKG-60-TS
    25–50 HP
    60"
    252 lbs
    33"
    6 upper / 7 lower
    AR400
    FRKG-60HD-TS
    25-50 HP
    60"
    287 lbs
    42"
    6 upper / 7 lower
    AR400
    FRKG-66HD-TS
    45-60 HP
    66"
    428 lbs
    42"
    9 upper / 10 lower
    AR400
    FRKG-72HD-TS
    45-80 HP
    72"
    478 lbs
    42"
    11 upper / 12 lower
    AR400

    FRKG-48-TS

    Tractor HP
    21–25 HP
    Working Width
    48"
    Weight
    217lbs
    Max Opening
    33"
    Tines
    6 upper / 6 lower
    Material
    AR400

    FRKG-54-TS

    Tractor HP
    25–50 HP
    Working Width
    54"
    Weight
    243 lbs
    Max Opening
    33"
    Tines
    6 upper / 7 lower
    Material
    AR400

    FRKG-60-TS

    Tractor HP
    25–50 HP
    Working Width
    60"
    Weight
    252 lbs
    Max Opening
    33" H
    Tines
    6 upper / 7 lower
    Material
    AR400

    FRKG-60HD-TS

    Tractor HP
    25-50 HP
    Working Width
    60"
    Weight
    287 lbs
    Max Opening
    42"
    Tines
    6 upper / 7 lower
    Material
    AR400

    FRKG-66HD-TS

    Tractor HP
    45-60 HP
    Working Width
    66"
    Weight
    428 lbs
    Max Opening
    42"
    Tines
    9 upper / 10 lower
    Material
    AR400

    FRKG-72HD-TS

    Tractor HP
    45-80 HP
    Working Width
    72"
    Weight
    478 lbs
    Max Opening
    42"
    Tines
    10 upper / 12 lower
    Material
    AR400

    Need help choosing the right FRKG-TS root grapple? Contact Unifarm Machinery Corporation for recommendations based on tractor size, attachment setup, working width, and property cleanup needs.

    Explore Our Equipment

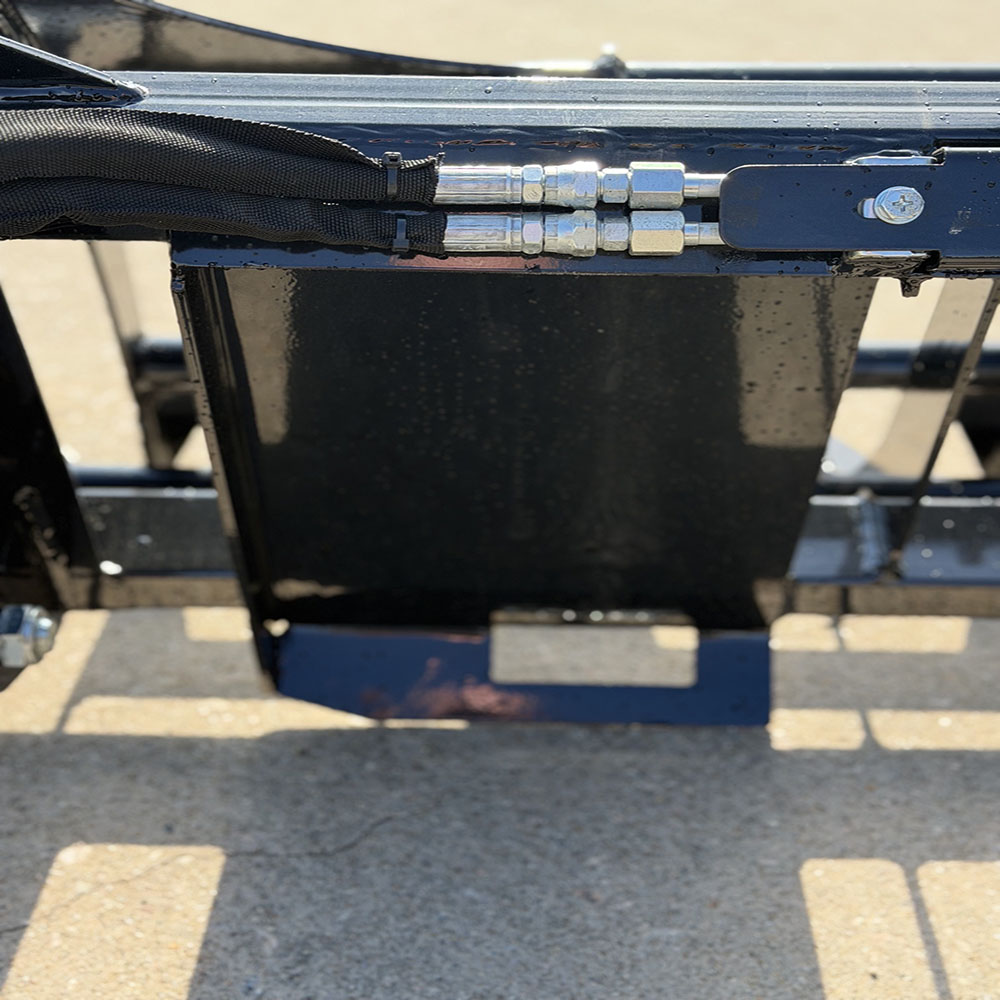

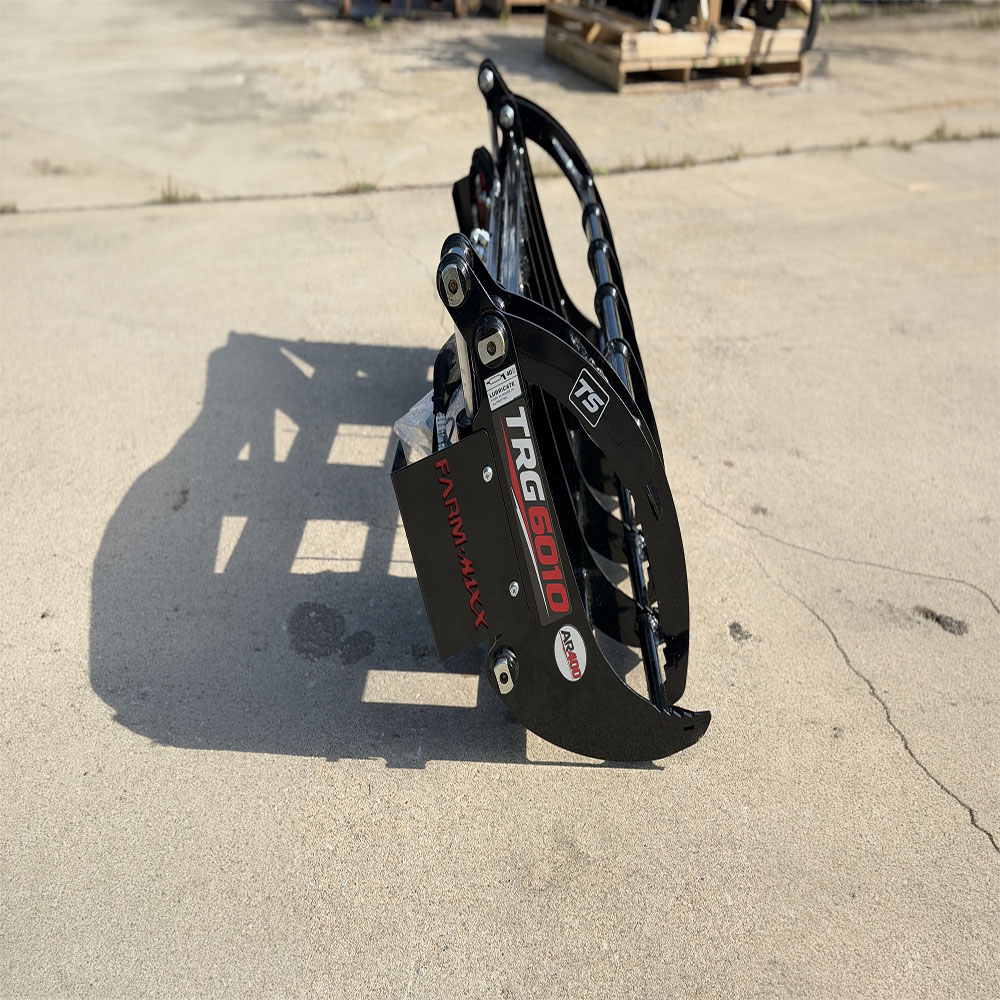

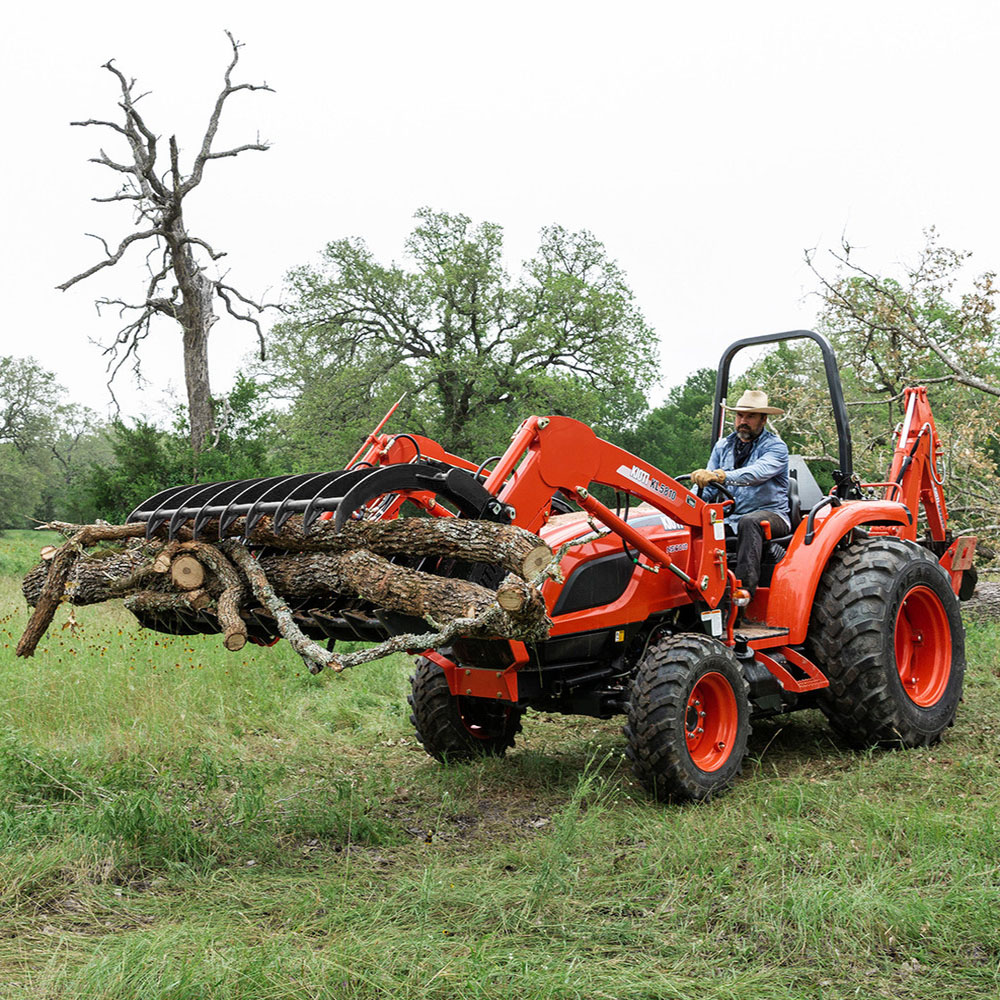

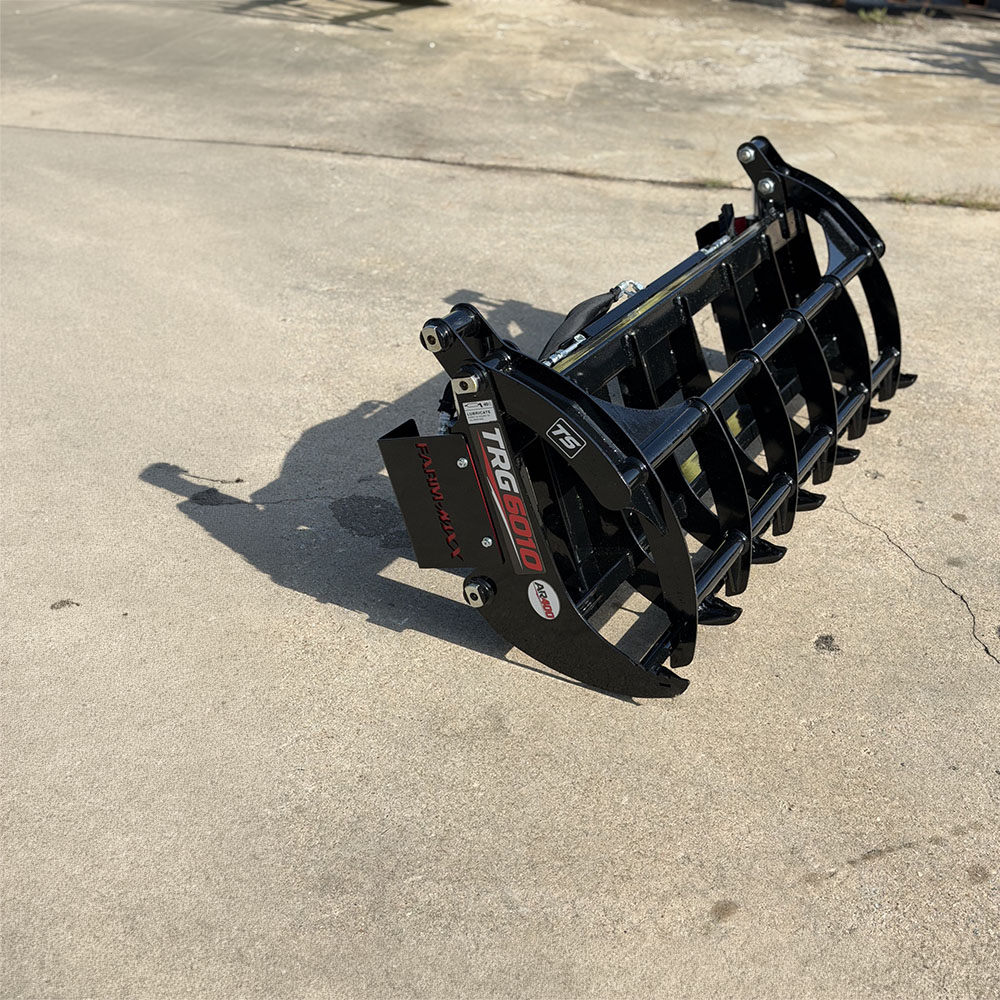

    Farm-Maxx FRKG TS Series Gallery
