Light-duty gear-drive tillers built for compact tractors

Farm-Maxx FTL Rotary Tillers

Designed for homeowners, landscapers, and small-acreage farmers who need dependable soil preparation at an affordable price.

Download Manual (PDF)

Farm-Maxx FTL Series Overview

The Farm-Maxx FTL Series Rotary Tillers are engineered to deliver exceptional soil cultivation for a variety of agricultural needs. These tillers are perfect for preparing seedbeds, controlling weeds, and enhancing soil aeration. With a focus on durability and ease of use, the FTL Series is your reliable partner in achieving optimal soil conditions.

Download Brochure (PDF)

Key Features of Farm-Maxx FTL Rotary Tillers

Slip-Clutch PTO Driveline

Protects the tractor and tiller components from overload when hitting rocks or roots.

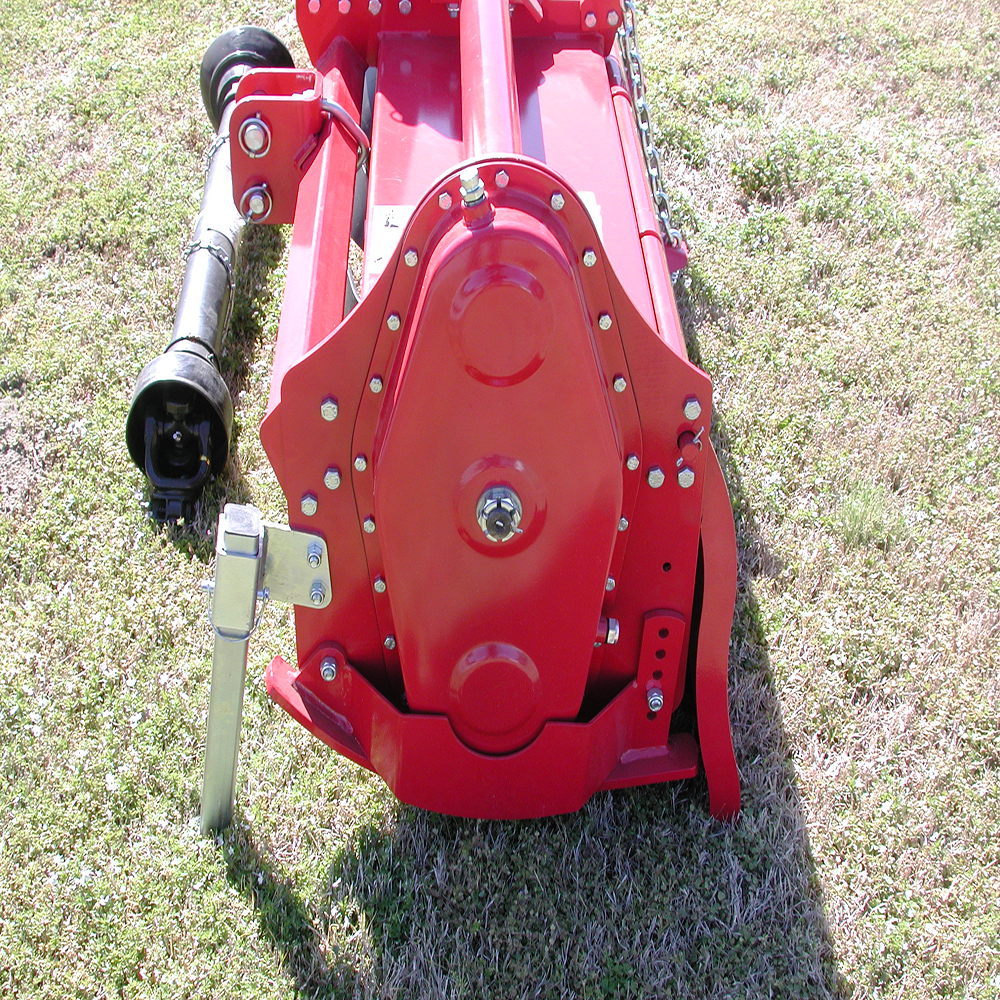

Gear-Drive Transmission

Reliable gear-drive design ensures smooth power transfer with less maintenance than chain drives.

Adjustable Lower Hitch Blocks

Lightweight and maneuverable, the FTC Series is purpose-built for tractors as small as 13 HP, making professional tilling accessible to small acreage owners.

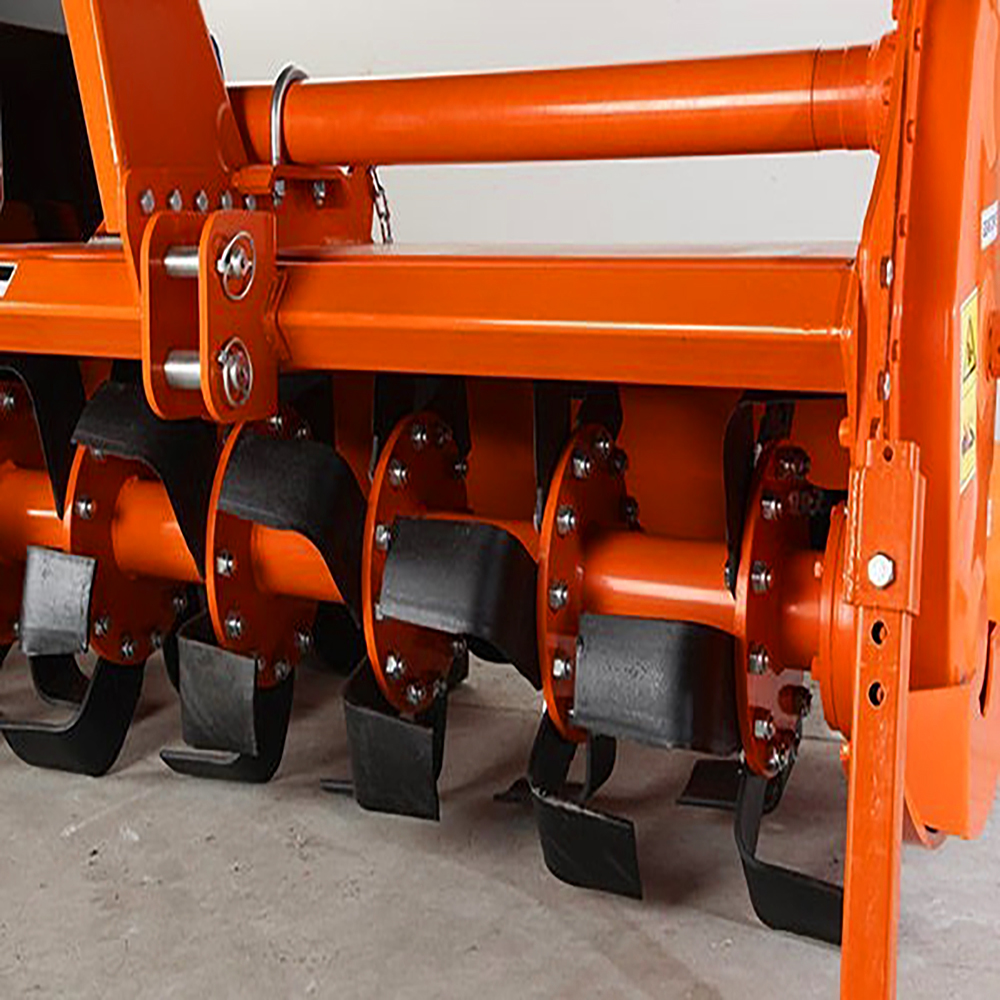

Forged & Heat-Treat Tines

Heavy-duty tines penetrate compacted soil and create a fine, uniform seedbed.

Farm-Maxx FTL Series Rotary Tiller Comparison

Compare the Farm-Maxx FTL Series Rotary Tillers to find the right model for your compact tractor and soil preparation needs. Available in 36", 48", and 60" working widths, these gear-driven tillers feature a 7-inch working depth, six blades per flange, and slip clutch driveline protection. Designed for tractors requiring 15–40 PTO horsepower depending on the model, the FTL Series is well suited for garden preparation, landscaping, seedbed development, and small-acreage agricultural applications.

☰
Model
↔
Working Width
↕
Working Depth
⚙
Total Blades
🚜
PTO HP Required
⚖
Approx. Weight
🔗
Hitch
FTL-36
36"
7"
24
15–25 PTO HP
392 lbs
ASAE Cat. I
FTL-48
48"
7"
36
25–35 PTO HP
454 lbs
ASAE Cat. I
FTL-60
60"
7"
42
25–40 PTO HP
496 lbs
ASAE Cat. I

Farm-Maxx FTL-36

Working Width
36"
Working Depth
7"
Blades per Flange
6
Total Blades
24
Side Drive
Gear Drive
Driveline Protection
Slip Clutch
Hitch
ASAE Cat. I
PTO HP Required
15–25 HP
Approx. Weight
392 lbs

Farm-Maxx FTL-48

Working Width
48"
Working Depth
7"
Blades per Flange
6
Total Blades
36
Side Drive
Gear Drive
Driveline Protection
Slip Clutch
Hitch
ASAE Cat. I
PTO HP Required
25–35 HP
Approx. Weight
454 lbs

Farm-Maxx FTL-60

Working Width
60"
Working Depth
7"
Blades per Flange
6
Total Blades
42
Side Drive
Gear Drive
Driveline Protection
Slip Clutch
Hitch
ASAE Cat. I
PTO HP Required
25–40 HP
Approx. Weight
496 lbs

All Farm-Maxx FTL Series Rotary Tillers feature gear-driven side transmissions, six blades per flange, slip clutch driveline protection, and ASAE Category I hitch compatibility. Tractor PTO horsepower and equipment compatibility should be confirmed before purchasing.
For product information, availability, and authorized dealer support, contact Unifarm Machinery Corporation.

Discover the Versatility of Our Farm-Maxx FTL Series

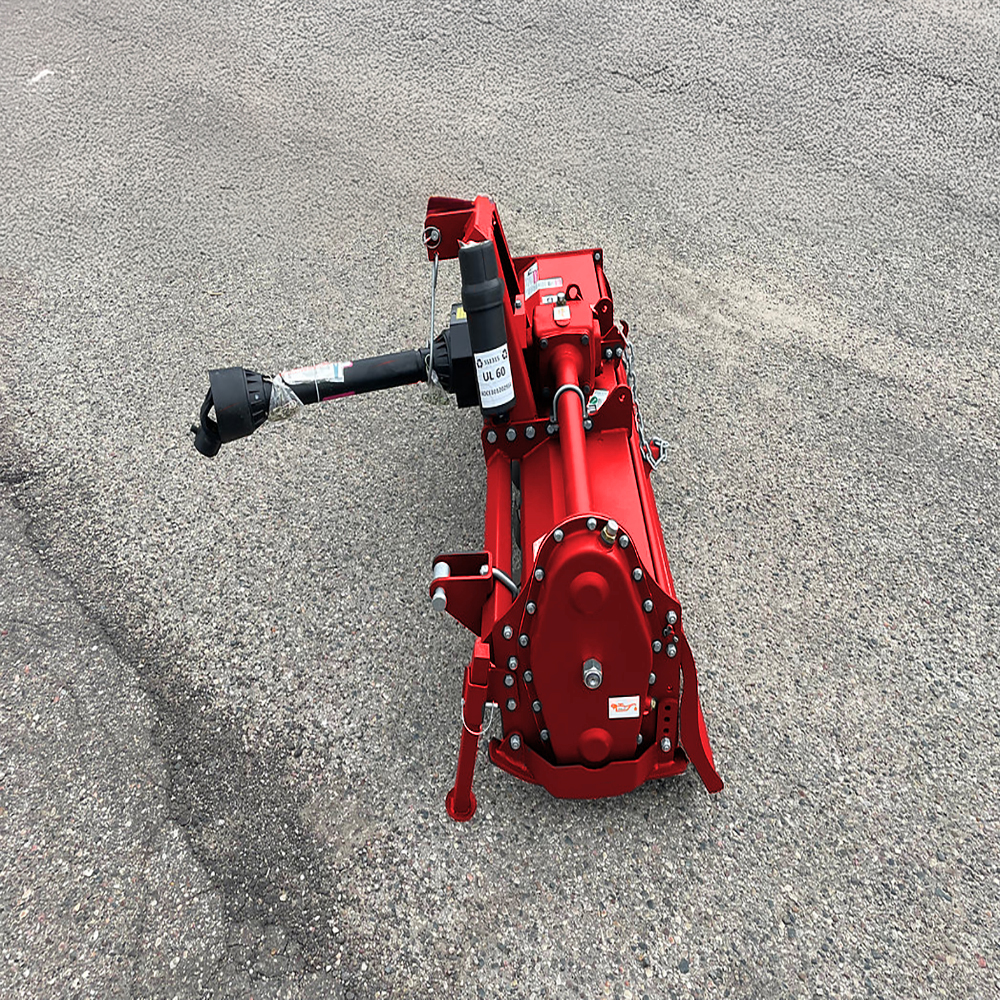

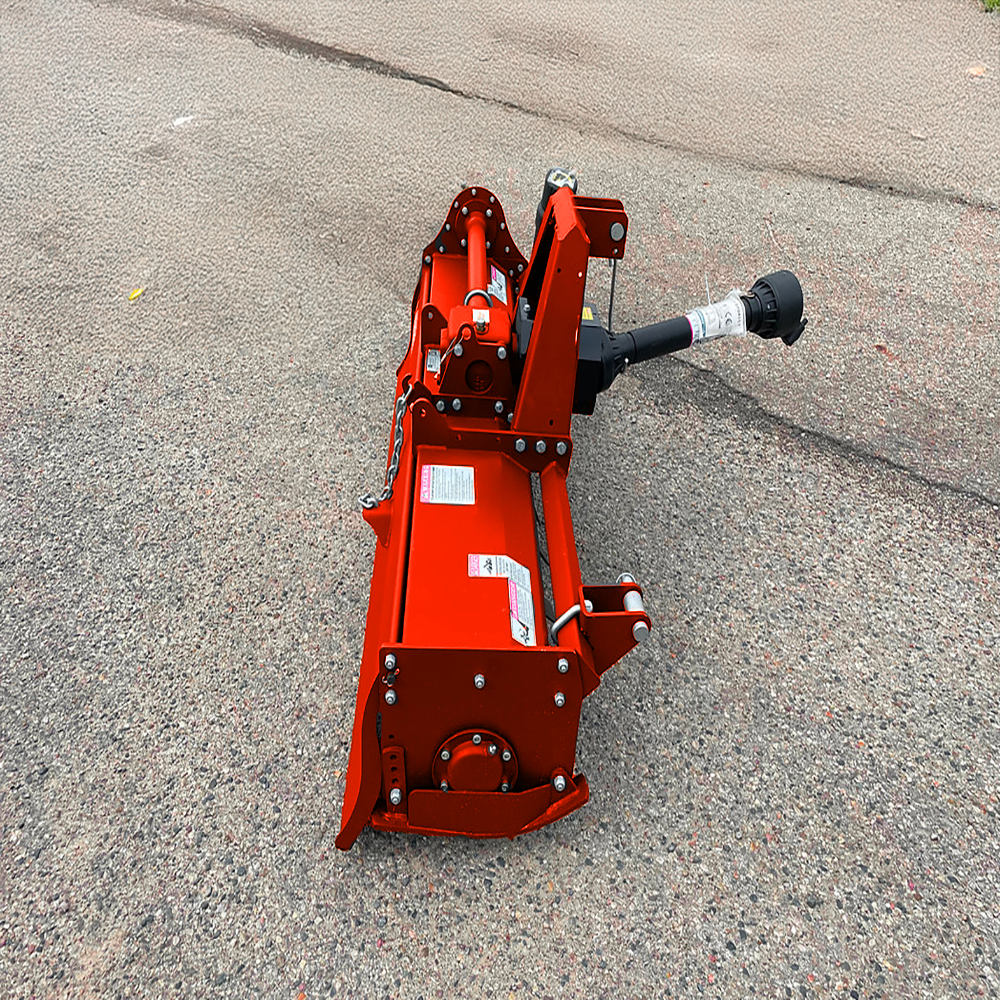

Farm-Maxx FTL Series Image Showcase

Get in Touch with UniFarm Today

Ready to enhance your farming operations with the Farm-Maxx FTL Series Rotary Tillers? Contact UniFarm Machinery Corporation for more information and personalized assistance. Our team is here to help you find the perfect solution for your agricultural needs. Call us at 252-291-3997 to speak with a representative today. Discover how our reliable equipment can transform your farming experience and help you achieve greater productivity.

Contact Us
